Linda Hall — Building Conditions, Performance Assessment, and Improvement Strategies

Improving comfort, reducing infiltration, and protecting the building’s collections.

The Library’s envelope review identified several areas where thermal performance and moisture control warrant attention. Roof conditions, curtain wall connections, and older masonry transitions are particularly relevant.

• Assessment of Existing Building Envelope
• Material Analysis & Lifespan
• Climate Risk & Environmental Footprint Considerations
• Facility Improvement Measures (FIMs) for Envelope Optimization
• Performance Modeling & Impact Analysis
• Implementation Strategy & Roadmap

Assessment of Existing Building Envelope

Key Performance Indicators (KPIs)

The assessment of the existing building envelope requires the identification and tracking of key performance indicators (KPIs) to ensure that data-driven decisions are made to optimize energy efficiency, durability, and environmental resiliency. These KPIs are categorized based on the primary performance metrics and material conditions that influence the envelope’s effectiveness.

TABLE 1 — Comprehensive Building Envelope KPI Table

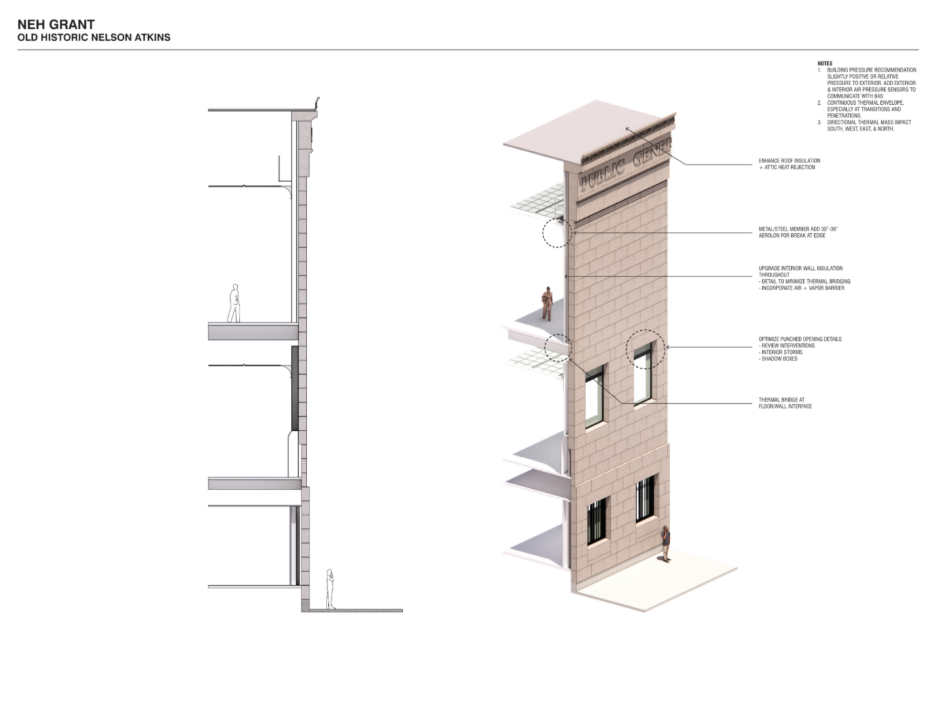

FIGURE 1 — Humanities Building with Heavyweight Structure

(Example: Nelson Building at Nelson Atkins Museum of Art, Kansas City, Mo.)

Heavyweight Buildings (≥ 35 lb/ft² wall weight)

A heavyweight buildings are characterized by thick, massive envelope materials such as stone, multi-wythe brick, and concrete. These assemblies have very high thermal mass, meaning they absorb, store, and slowly release heat and moisture over long periods. This creates a stable indoor environment but also results in slow drying rates and delayed temperature response. Because of their mass and rigidity, heavyweight structures are inherently durable and resistant to many climate forces, but they can be vulnerable to deep moisture penetration, freeze–thaw cycles, and long-term material fatigue.

The Legacy Nelson Building exemplifies this type: its historic stone and masonry walls provide exceptional longevity and thermal inertia while requiring specialized preservation strategies to manage moisture, prevent cracking, and maintain envelope breathability. These buildings demand interventions that are minimally invasive, vapor-open, and compatible with heritage materials.

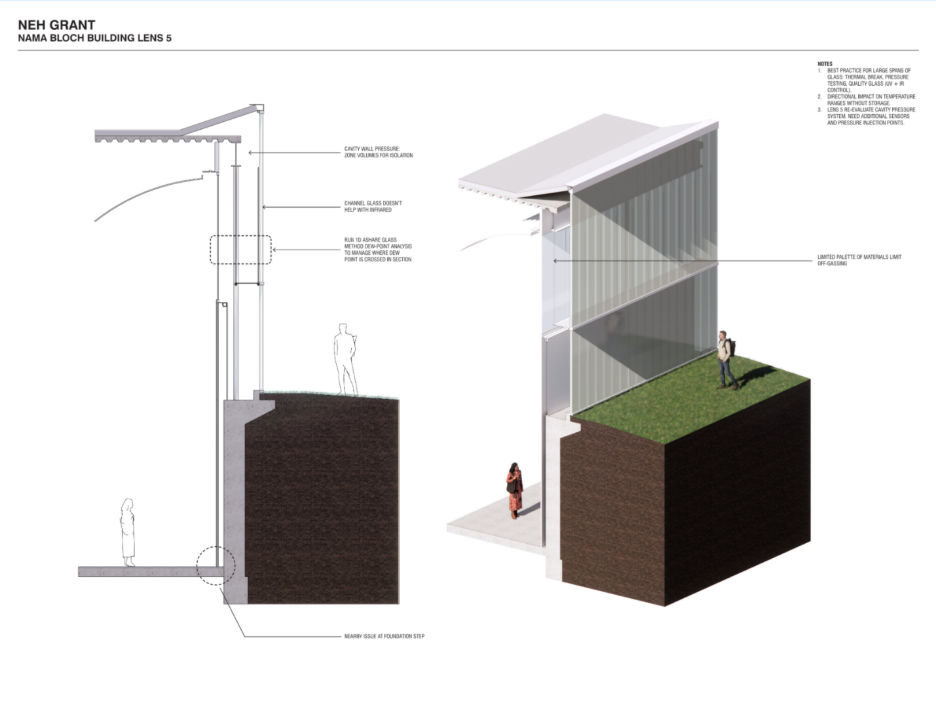

FIGURE 2 — Humanities Building with Lightweight Structure

(Example: Bloch Building at Nelson Atkins Museum of Art, Kansas City, Mo.)

Lightweight Buildings (< 10 lb/ft² wall weight)

Lightweight buildings are composed of thin, low-mass envelope systems, often dominated by glass, metal framing, and other high-performance but low-inertia materials. With very little ability to store or buffer heat and moisture, lightweight structures respond quickly to outdoor temperature swings and solar exposure. This makes them highly vulnerable to overheating, rapid heat loss, condensation, and wind-driven rain infiltration, especially in climates with extreme variability.

The Bloch Building represents this condition: its iconic glass façade offers transparency and architectural lightness but requires precise control of solar heat gain, humidity, and air infiltration. Lightweight buildings benefit most from dynamic glazing, airtightness improvements, thermal breaks, and active HVAC coordination, as envelope performance is tightly linked to mechanical system behavior.

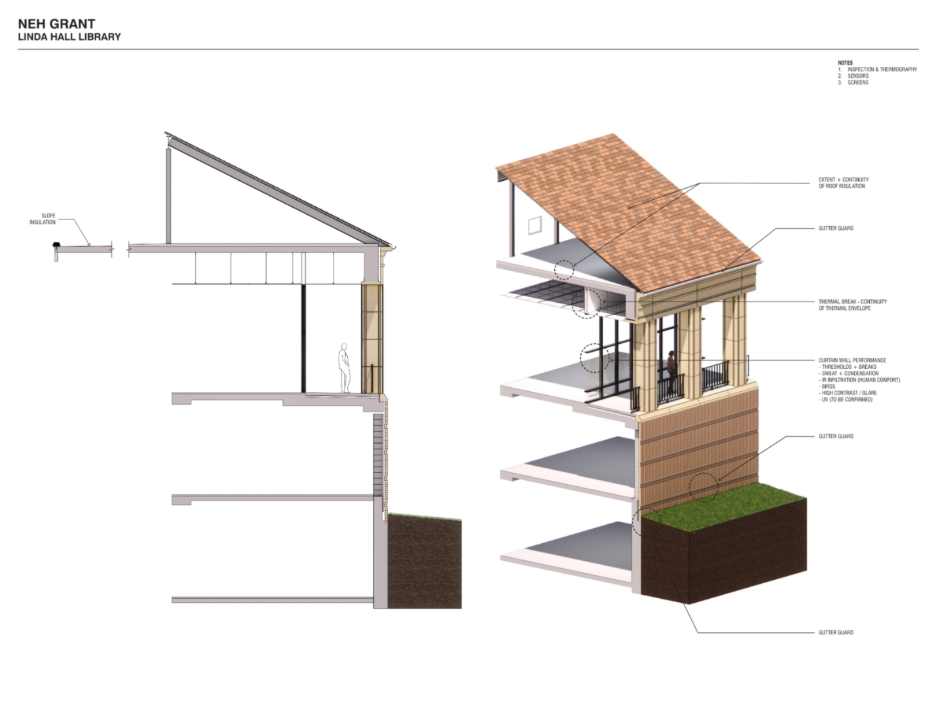

FIGURE 3 — Humanities Building with Mediumweight Structure

(Example: Linda Hall Library, Kansas City, Mo.)

Mediumweight Building (Between 10–35 lb/ft² wall weight)

A mediumweight building uses a combination of masonry, block, steel framing, and moderate-mass assemblies, offering a balance between the thermal inertia of heavy structures and the responsiveness of lightweight ones. These envelopes can buffer temperature swings better than lightweight buildings but still exhibit vulnerability to moisture accumulation within cavities, thermal bridging at steel connections, and freeze–thaw stress in brick and CMU.

Linda Hall Library exemplifies this hybrid condition. Its brick and block exterior provides durability and some thermal mass, while later additions and mixed-material assemblies introduce more complex hygrothermal behavior. Mediumweight buildings require strategies that emphasize moisture management, insulation compatibility, improved drainage, and thoughtful thermal-bridge mitigation, allowing them to leverage their inherent strengths while addressing their key vulnerabilities.

TABLE 2 — Humanities/Institutional Administrator KPI Framework

(“What We Evaluate”)

KPI Category	What This KPI Includes (Plain-Language Description)
Thermal Performance of the Envelope	How well the walls, roof, windows, and foundation resist heat moving in and out of the building. Includes the building’s ability to maintain stable indoor temperatures and limit energy waste.
Air & Moisture Control	How effectively the building envelope keeps outside air and moisture from entering, and prevents indoor humidity from causing damage. Includes leakage around windows/doors and water penetration through walls or roofs.
Structural and Climate Resilience	How well the envelope stands up to climate-related stresses: heat waves, cold snaps, heavy rain, snow, wind, storm events, and freeze–thaw cycles. Includes durability and long-term stability of envelope components.
Indoor Environmental Stability (Envelope-Driven)	How the envelope influences interior comfort: temperature uniformity, humidity stability, and protection of sensitive collections. This KPI captures how well the envelope supports healthy, stable indoor conditions.
Material Lifespan & Condition	The long-term health of exterior walls, roofs, glazing, sealants, and foundations. Includes aging, deterioration, compatibility of historic materials, and risks that shorten useful life or create unexpected failure.
Climate & Carbon Impact (Envelope-Related)	How envelope performance affects energy use, long-term carbon footprint, and environmental impact. Includes operational carbon from HVAC demand and embodied carbon tied to envelope renovations.

TABLE 3 — Technical KPI Definition Matrix

KPI Category		What We Study Within This KPI (Technical Components)
1. Insulation & Thermal Resistance
Thermal mass effects (heat storage & release)		R-values & U-values of all envelope assemblies
Thermal gradients across wall/roof assemblies
Locations and severity of thermal bridges
Interior surface temperatures relevant to condensation risk
2. Air & Moisture Control
Continuity of air barrier layers		Air leakage pathways at doors, windows, joints
Bulk water pathways at flashing, parapets, roof edges
Vapor permeability of assemblies (inward/outward drying potential)
Moisture storage vs. release characteristics of wall systems
3. Structural Vulnerabilities to Climate Stressors
Sealant/connection weaknesses under thermal expansion		Envelope susceptibility to wind pressure, uplift, racking
Freeze–thaw susceptibility of masonry or porous materials
Structural behavior of glazing systems under stress
Movement, cracking, displacement of envelope materials
4. IEQ Impacts Related to Envelope
Humidity stability vs. envelope-driven moisture loads		Temperature uniformity in perimeter zones
Condensation potential on framing/glazing surfaces
Radiant asymmetry near exterior walls
Envelope impact on pollutant infiltration
5. Material Condition & Lifespan
Sealant and joint conditions	Aging and deterioration mechanisms (UV, moisture cycling, corrosion, spalling)
Compatibility of historic and modern envelope materials
Projected remaining service life of components
Degradation patterns indicating system failure
6. Environmental Footprint & Carbon Implications
Impact of envelope performance on peak loads	Energy loss attributable to envelope deficiencies
Embodied carbon implications of envelope materials
Long-term operational carbon reduction potential of proposed upgrades
Lifecycle durability vs. replacement frequency

Current Envelope Performance

The current performance of the building envelope is a critical factor in assessing its ability to maintain energy efficiency, indoor environmental quality (IEQ), and resilience against climate-related stressors. Understanding how well the building envelope performs under various environmental conditions allows for data-driven decisions that guide maintenance and upgrades.

The current energy performance is measured in a metric called EUI, which stands for Energy Use Intensity and is measured in kBTU/s.f./year.

Linda Hall Library Current EUI: 76.0 kBTU/s.f./year

TABLE 4 — Executive Summary Table: How to Evaluate Current Envelope Performance

High-level view for administrators, trustees, board members, planning directors, etc.

(Focus: What’s being evaluated? Why does it matter? What decisions does it influence?)

Performance Category	What It Measures	Why It Matters for Operations & Risk	Institutional Decision Impact
Insulation & Thermal Resistance	R-values, U-values, thermal bridging	Influences energy use, comfort, and HVAC load; impacts long-term operating cost	Guides capital decisions for insulation retrofits, window upgrades, and roof improvements
Air & Moisture Infiltration	Leakage through windows, doors, penetrations; moisture intrusion	Affects energy waste, mold/mildew risk, IEQ, and potential damage to finishes	Determines prioritization of weatherization, envelope sealing, and drainage investments
Structural Vulnerability to Climate Stress	Response to wind, rain, heat, freeze–thaw cycles, UV exposure	Directly affects resilience, maintenance cost, and safety during extreme weather	Drives mitigation planning, capital repair sequencing, and resiliency investments
Impact on Indoor Environmental Quality (IEQ)	Temperature stability, air quality, humidity, drafts, condensation	IEQ influences staff/patron comfort, artifact protection, and energy performance	Critical for collection care policy, HVAC strategy, and occupant wellness goals
Material Condition & Lifespan	Age, degradation, compatibility, deterioration of walls, windows, roofs	Helps avoid unexpected failures and preserves architectural/historic value	Supports long-term capital planning and prioritization of preservation vs. replacement
Climate & Carbon Impact	Operational energy load due to envelope deficiencies	Envelope quality drives long-term carbon footprint and cost volatility	Influences sustainability planning, grant funding strategies, and carbon neutrality goals

TABLE 5 — Technical Diagnostic Matrix: Current Envelope Performance

For engineers, architects, envelope consultants, facility operators, contractors.

Performance Area	What Is Evaluated	How It Is Measured / Tools	Typical Issues Identified	Implications
Insulation Properties & Thermal Resistance	Wall/roof insulation levels; glazing U-values; foundation thermal behavior	Energy modeling, thermography, material sampling, ASHRAE comparisons	Missing insulation, wet insulation, thermal bridging, low-performing glazing	Elevated heating/cooling loads, temperature swings, condensation risk
Thermal Bridging Analysis	Conductive pathways across structural elements	IR scans, detail review, 3D heat flow models	Hot spots at sills, steel frames, roof-wall junctions, penetrations	Energy loss, comfort issues, moisture condensation at cold surfaces
Air Infiltration	Leakage through fenestration, joints, penetrations	Blower door tests, smoke tests, thermography	Leaky doors, window seals, MEP penetrations not air-sealed	Energy waste, drafts, humidity load increase, pollutant entry
Moisture Infiltration & Vapor Movement	Bulk water entry + vapor diffusion through assemblies	Moisture meters, IR scans, wall probes, hygrothermal modeling	Wet cavities, leaks at flashing, condensation in wall cores	Mold, interior finish damage, corrosion, freeze–thaw deterioration
Structural Vulnerabilities to Climate Stress	Wind response, water shedding, temperature cycling, freeze–thaw	Visual inspection, drone surveys, crack mapping	Loose masonry, failing mortar, glazing movement, roof membrane fatigue	Risk during storms, safety concerns, accelerated degradation
IEQ/Comfort Impacts	Indoor temperature consistency, humidity, air quality	Data logging, BMS trending, thermal comfort surveys	Cold/hot zones, condensation on glass, stagnant air	Increased HVAC demand, occupant discomfort, conservation risks
Material Condition Assessment	Roof, walls, windows, foundations	Drone imaging, lift-based inspection, core sampling, façade surveys	Spalling brick, UV-degraded membranes, sealant failure, efflorescence	Predictive maintenance needs, preservation risk
Operational Energy Impact	Energy waste due to envelope deficiencies	Energy modeling (pre/post FIM), utility analysis	Disproportionate HVAC consumption, peak load sensitivities	Direct cost impact; informs ROI on envelope upgrades
Historic Preservation Constraints	Compatibility of new materials, reversibility	Conservation guidelines, SHPO/NPS standards	Inappropriate materials, risk to historic fabric	Limits approach; guides reversible/low-impact solutions

Thermographic Scans of Institutional Buildings in Kansas City, Mo.

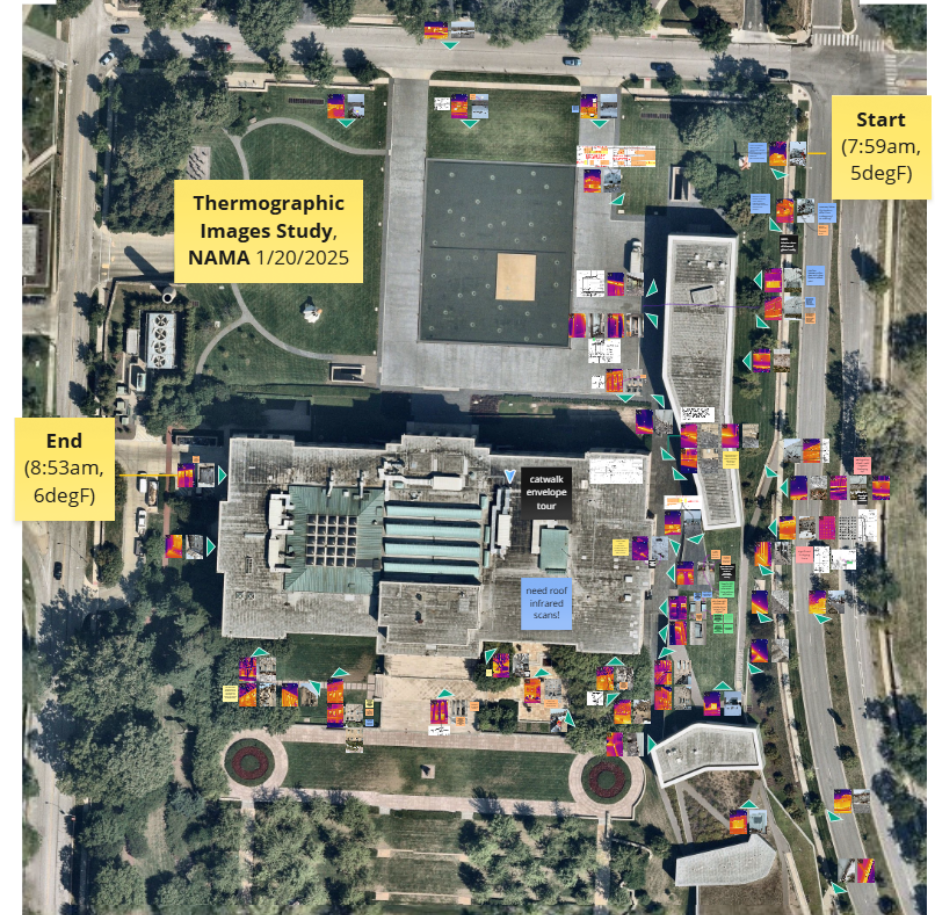

FIGURE 4 — NAMA Campus IR Scans, January 20^th, 2025

An example of still images and accompanying thermographic scans taken around the Nelson Atkins Museum of Art on January 20^th. Study was conducted when outdoor ambient temperatures were around 5°F/-15°C. The images documented current conditions of the building envelope and identified several areas of concern.

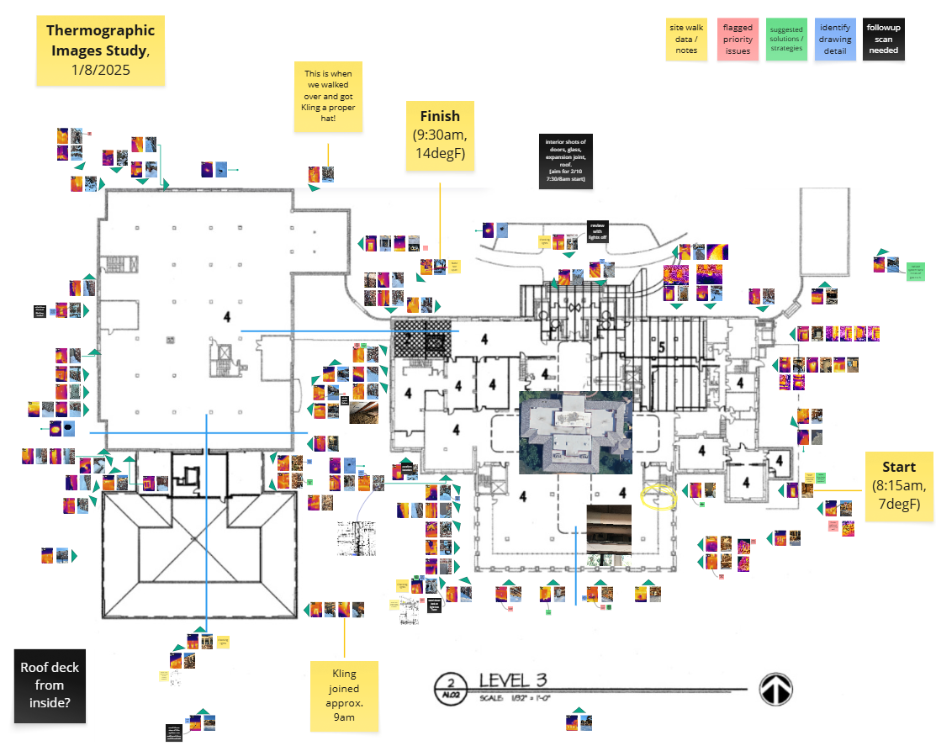

FIGURE 5 — Linda Hall Library Building and Grounds IR Scans, January 8^th, 2025

View More In Depth: https://miro.com/app/board/uXjVGJPUF_k=/?share_link_id=91991109839

Still images and accompanying thermographic scans taken around the Linda Hall Library on January 8^th. Study was conducted when outdoor ambient temperatures were between 7°F/-14°C and 14°F/-10°C. Like the comparable Nelson studies, the images documented current conditions of the building envelope and identified several areas of concern.

FIGURES 6 & 7 — Common Findings from Infrared Scans

In Figure 6, yellow banding along the door frame indicates heat loss via conduction. The thermal “flaring” indicates heat loss via exfiltration. Fixes include replacing door and frame with thermally broken materials and routinely fixing door sweeps and weatherstripping to stop infiltration/exfiltration.

In Figure 7, conductive heat loss is commonly found where MEP items like hose bibbs and exterior electrical outlets interrupt the building envelope. In this example, highly thermally conductive metal piping pierces the building envelope creating a thermal highway between the indoors and outdoors. As the temperatures dropped in early 2025, it created a large temperature difference between the indoor and outdoor environments, which fuels heat loss (or conversely heat gain in the summer). A simple fix is to replace a portion of the metal piping near the building envelope with PEX or another material with dramatically lower thermal conductivity.

Material Analysis & Lifespan

The material analysis and lifespan assessment are critical components in evaluating the existing building envelope. These assessments help determine the current condition of structural components, identify risks associated with thermal bridging and material degradation, and ensure that any upgrades or replacements comply with historic preservation requirements, wherever necessary. The goal is to enhance energy efficiency, extend the functional life of the envelope, and maintain the aesthetic and architectural integrity of the structures.

Building Envelope Analysis and Lifespan

Exterior Walls

The exterior brick walls, trimmed with masonry accents, are in remarkably good condition — particularly considering the age and multi-phase construction of the facility. Across the façades, there were minimal signs of efflorescence, delamination, spalling, or mortar failure, suggesting that the masonry has been well maintained and continues to perform as intended. No evidence of widespread moisture penetration was observed, and the brick surfaces showed no significant deterioration associated with long-term water exposure. However, thermal bridging was common and widespread, appearing most prominently around exterior doors, electrical boxes, hose bibbs, and other mechanical or electrical penetrations. These bridges represent areas of lost energy and localized condensation potential, and they offer a clear opportunity for targeted, relatively low-impact improvements. The lifespan of the exterior walls is highly resilient and expected to last decades longer.

Windows

The condition of the window systems across the Library varies by façade and system type, but overall performance is generally stable. The most significant concern is thermal bridging through window frames, especially in the south-facing curtain wall systems, where clear, uncoated glazing also contributes to substantial solar heat gain. These systems were never equipped with low-e coatings, making them especially vulnerable to overheating, higher HVAC loads, and staff complaints. Other window systems throughout the building are performing well: there were minimal signs of staining, fogging, warping, or seal failure, and no notable hardware degradation was observed. These windows appear to be maintaining acceptable levels of airtightness and environmental stability, though thermal imaging suggests they would still benefit from efficiency upgrades over time. The historic windows on most façades

Roofs

Linda Hall Library’s roofing systems include flat roofs towards the center along with a mix older slate tile and newer composite tile roofs rimming the edges, each with distinct performance considerations. The newer flat roofs are generally in good condition, though areas of ponding were noted in previous site visits on older sections of roof, raising concerns that water may have infiltrated beneath the membrane and potentially saturated underlying insulation. Because snow covered the roof during the infrared study, a follow-up thermographic inspection will be necessary to confirm moisture presence or insulation performance loss. Surrounding the building, the traditional slate roofs add a visually striking architectural character, though their maintenance can be challenging due to slate’s inherent fragility. The 2005 addition uses a composite slate alternative that effectively matches the original aesthetic while offering improved durability and lower maintenance costs. If sections of traditional slate from low-visibility or non-critical roof areas were replaced with synthetic panels, the removed natural slate could serve as a useful maintenance stockpile for future repairs on the most visible heritage roof areas.

Foundation

Foundation conditions at Linda Hall Library are generally stable, though one area on the north façade showed noticeable settling, likely the result of long-standing stormwater management issues. This settling appears to have contributed to minor moisture infiltration, emphasizing the need for improved site drainage and perimeter water control. Infrared scanning also revealed that the foundation walls are a major source of heat loss, as there is no insulation present at or below grade. As drainage and moisture issues are corrected, there is a valuable opportunity to introduce foundation insulation extending several feet below grade, ideally reaching below the frost line to maximize thermal benefit and reduce winter heat loss. Such an intervention would substantially improve envelope performance while helping stabilize interior environmental conditions near perimeter floor zones.

Material Analysis Summary: A thorough material analysis and lifespan assessment provides valuable insights into the condition and performance of the building envelope. By addressing the challenges related to thermal bridging, material degradation, and preservation constraints, stakeholders can implement strategic improvements that balance energy efficiency with historical integrity. The insights gained from this analysis will guide targeted interventions to extend the life and performance of the envelope while respecting the cultural heritage of these iconic institutions.

Climate Risk & Environmental Footprint Considerations

The building envelope of the Linda Hall Library and the Nelson Atkins Museum of Art is critical in mitigating climate risks and minimizing environmental impacts. Climate change has increased the frequency and intensity of weather events, exposing historic structures to unprecedented environmental stressors. This section addresses climate adaptation factors, carbon and energy impact analysis, and the long-term sustainability of the current building envelope materials.

TABLE 6 — Essential Climate Adaptation Matrix

(Summary table for administrative personnel)

Climate Factor	Primary Risks	Building Type Sensitivity	Most Effective Mitigations	Who Needs to Act
Temperature Extremes	Thermal expansion, material fatigue, glazing stress, heat gain, delayed cooling	Lightweight (Bloch): highest heat sensitivity; Mediumweight (LHL): thermal mass delays cooling; Heavyweight (Nelson): long thermal lag and nighttime heat release	Dynamic glazing, shading devices, thermal breaks, internal insulation (vapor-open), reflective coatings, controlled night purge	Envelope consultants, HVAC team, preservation staff
Precipitation Changes	Water intrusion, glazing joint failures, freeze–thaw cycles, foundation movement, efflorescence	Lightweight: infiltration at joints; Medium: masonry saturation, salt migration; Heavy: deep moisture retention, prolonged drying	Sealant upgrades, rainscreens, drainage mats, repointing with appropriate mortar, French drains, breathable water repellents	Facilities, preservation, landscape
Storm Resilience	Wind uplift, impact risk to glazing, parapet failure, structural vibration, roof drainage overload	Lightweight: highest wind/impact risk; Medium: failures at parapets, openings; Heavy: risk at cornices, loose stone	Impact-resistant glazing, reinforced parapets, upgraded flashing, drainage improvements, added anchors/bracing	Structural engineers, envelope specialists, contractors
Humidity Management	Condensation, mold, corrosion, plaster damage, microclimate instability for collections	Lightweight: condensation at glazing; Medium: cavity moisture, corrosion of steel; Heavy: trapped moisture in thick walls	Thermally broken frames, improved glazing, in-wall sensors, zoned dehumidification, vapor-open interior insulation	HVAC, conservation staff, envelope consultants
Urban Heat Island (UHI)	Increased cooling loads, faster material aging, occupant discomfort, stress on collections	Lightweight most affected; Medium/Heavy moderately affected	Cool roofs, green roofs, high-albedo paving, perimeter tree canopy, dynamic shading, HVAC zoning	Planning, landscape, sustainability teams

TABLE 7 — Consolidated Technical Climate Adaptation Table

(For technical readers: engineers, architects, facilities operators)

Impact Category	Lightweight (Bloch Building)	Mediumweight (LHL)	Heavyweight (Nelson Building)	Cross-Building Mitigation Toolkit
Temperature Extremes	High solar gain; glazing sealant failure; material warping	Heat storage delays cooling; thermal bridging; masonry cracking	Long thermal lag; nighttime heat release; stone expansion	Dynamic glazing, shading devices, thermal breaks, enhanced insulation, flexible sealants, controlled night purge
Changes in Precipitation	Wind-driven rain infiltration; glazing staining; foundation heave	Brick saturation; freeze-thaw spalling; salt migration	Deep moisture penetration; prolonged drying; plaster damage	Drainage improvements, breathable coatings, mortar repointing, capillary breaks, improved grading, rainscreens
Storm Resilience	High wind pressure on glass; risk of impact failure; façade deflection	Wind-driven damage at parapets/openings; moisture infiltration at joints	Loose masonry components; parapet/cornice failure potential	Impact-resistant glazing, reinforced parapets, structural anchors, improved flashing, aerodynamic landscape elements
Humidity Management	Interior condensation on glass; mold risk; metal frame corrosion	Cavity moisture, corrosion of framing, interior finish degradation	Moisture retention in masonry; efflorescence; plaster failure	Thermally broken frames, HVAC dehumidification, vapor-open insulation, moisture sensors, internal humidity zoning
Urban Heat Island	Overheating; HVAC oversizing; glazing hot spots	Moderate overheating; reduced passive performance	Material temperature cycling; increased roof temp	Cool roofs, green roofs, shading, reflective paving, landscape buffers, sensor-driven HVAC zoning

Climate Adaptation Factors

Climate adaptation is essential to protect the building envelope from anticipated climate shifts and environmental stressors. Both institutions face unique challenges, including temperature extremes, storm resilience, humidity management, and the urban heat island effect.

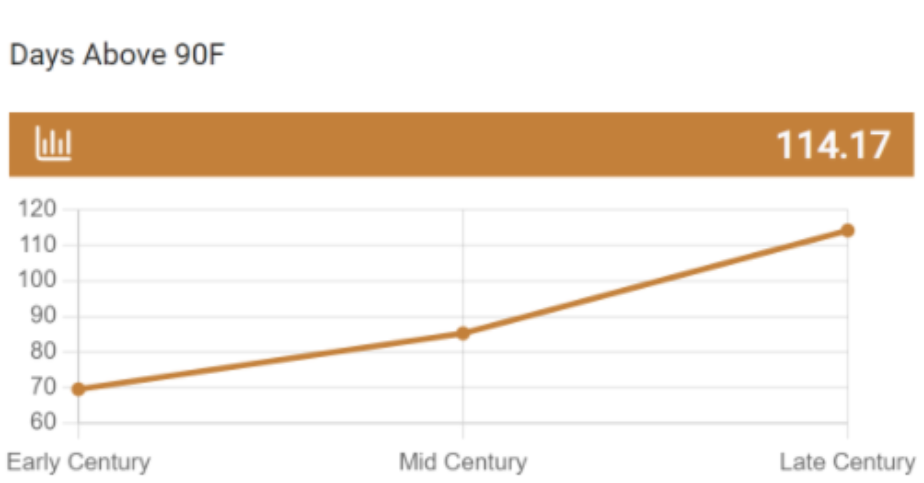

FIGURE 8 — Temperature Extremes Shifting over time in Kansas City, Mo. Days over 90°F

FIGURE 9 — Temperature Extremes Shifting over time in Kansas City, Mo. Days over 100°F/110°F

TABLE 8 — Climate-responsive Envelope Adjustments

TABLE 9 — Aerogel Plaster Properties (Imperial Units)

Property	Value/Benefit
Thermal Conductivity	As low as 0.125-0.173 BTU·in/hr·ft² · °F  –   extremely efficient compared to traditional lime or gypsum plasters
Thickness	Effective insulation at ¾ “2 in – ideal where interior space is limited
Vapor Permeability	μ-value between 5-10, meaning it’s highly breathable
Hydrophobic yet Breathable	Repels bulk water but allows vapor diffusion – avoids trapped moisture.
Fire Resistance	Typically non-combustible (Class A or Euroclass A1)
Reversible & Compatible	Mineral base makes it chemically and physically compatible with historic masonry and lime mortars

TABLE 10 — Aerogel Plaster Performance Benefit Snapshot (Imperial Units)

Feature	Aerogel Plaster	Traditional Lime Plaster
Thermal Conductivity	0.125–0.173 BTU·in/hr·ft²·°F	~0.52–0.69 BTU·in/hr·ft²·°F
Thermal Insulation	★★★★★ (very high)	★ (very low)
Vapor Permeability	★★★★	★★★★★
Historic Compatibility	★★★★	★★★★★
Application Thickness	Thin (¾–2″)	Moderate (⅝–1¼”)

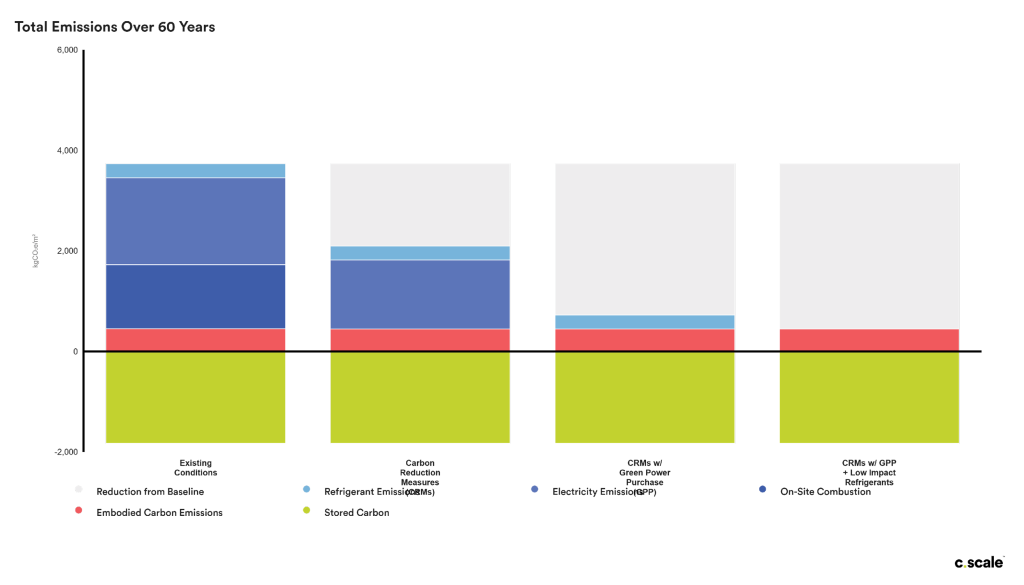

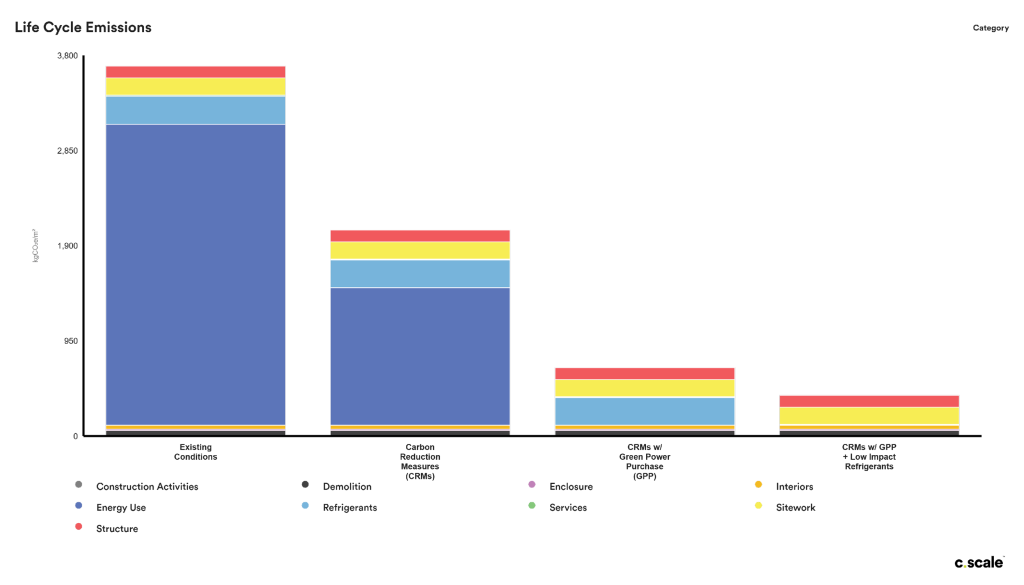

Carbon & Energy Impacts

Operational energy consumption  and carbon impacts from envelope deficiencies are meaningful. Below is a description of these impacts for each building.

As part of the ongoing analysis to assess energy performance at Linda Hall Library, a series of envelope-focused energy conservation strategies have been studied to address known deficiencies and improve overall building efficiency. These strategies aim to reduce thermal losses, enhance occupant comfort, and support long-term resilience. Key measures include improved roof performance, curtain wall and other glazing upgrades, and opaque above-grade and foundational wall insulation. These strategies serve as a foundation for quantifying energy savings potential, pending final impact analysis from the energy modeling process.

TABLE 11 — Proposed Energy Strategies for Linda Hall Library

Category	Improve Roof Performance	Improve Curtain Wall	Improve Non-Curtain Wall Glass Performance	Improve Building Tightness	Insulate Foundations	Improve Opaque Wall Performance
Strategy	Add R-value insulation to roof deck	Replace glass within existing curtain wall system	Replace curtain wall system with high-performance electrochromic glass	Reduce infiltration / exfiltration via comprehensive air sealing	Add continuous insulation	Add insulation to exterior walls from the interior
Baseline Condition	Roof assembly approx. R-30	Existing curtain wall glazing	Existing curtain wall glazing	Existing envelope leakage rates	R-0.5 + concrete	Existing opaque wall assemblies
Proposed Performance Target	Option 1: R-30 (baseline)Option 2: R-55 (stretch)	U-factor: 0.45SHGC: 0.26VLT: 0.60	U-factor: 0.27SHGC: 0.23VLT: 0.55	Substantial reduction in uncontrolled air leakage (verified via testing)	Option 1: R-7.5 continuous Option 2: R-15 continuous	Improved effective wall R-value via interior insulation
Roof Reflectance (SRI)	Target SRI ≈ 70	—	—	—	—	—
Key Technical Notes	Insulation upgrades limited by existing roof condition; R-55 evaluated as an aggressive but informative stretch target	Retrofit replaces glazing only; framing remains unchanged	Full system replacement yields significant thermal and solar-control improvement	Highest modeled energy savings across all envelope measures	Majority of foundation walls are below grade; feasibility varies	Interior insulation must remain vapor-open and preservation compatible
Assumptions & Open Questions	Does increasing insulation beyond code meaningfully improve performance given diminishing returns?	Represents high-performance replacement within existing framing	Electrochromic glass improves performance across a range of SHGC values	Requires commissioning, blower-door testing, and long-term maintenance	Most exposed concrete is below grade; access may be limited	Prior interior upgrades under review to avoid redundancy
Modeling Intent	Test sensitivity of roof insulation on energy and resilience	Improve solar and conductive performance without full façade replacement	Evaluate upper-bound envelope performance scenario	Capture dominant energy savings driver	Improve perimeter comfort and condensation control	Reduce thermal bridging and surface temperature swings
Relative Priority	Medium	Medium	Medium–High	High (Tier 1)	Medium	Medium

Facility Improvement Measures (FIMs) for Envelope Optimization

Thermal & Moisture Control Improvements

Improving the thermal and moisture performance of building envelopes is one of the most impactful and cost-effective strategies for reducing energy use, enhancing occupant comfort, and improving long-term durability. Across the studied facilities — including the historic Nelson building, Linda Hall Library, and the Bloch Building — specific Facility Improvement Measures (FIMs) have been identified to reduce heat transfer, mitigate moisture risks, and preserve envelope integrity while supporting operational and preservation goals.

High-Performance Insulation Upgrades

Enhanced insulation is fundamental to improving thermal resistance and stabilizing indoor temperatures year-round. Across the sites, strategies have focused on:

• Added Roof Insulation: Many roof systems currently lack optimal thermal resistance. Upgrades will include added insulation above the deck or in attic spaces to reduce heat loss in winter and heat gain in summer, particularly important for large roof surfaces such as those at Linda Hall Library and the Bloch Building.
• Aerogel, Vacuum-insulated Panels, or Bio-based Insulation Materials: These advanced insulation materials offer high R-values in thinner assemblies, making them ideal for space-constrained areas and historic applications where minimal visual or structural impact is required.
• Internal Insulation Strategies for Historic Preservation Compatibility: For historic buildings like the Nelson, internal furring systems and vapor-open insulation options will be used to avoid exterior alterations while still improving envelope performance.
• Below-Grade Insulation: Foundation walls — often uninsulated — are key contributors to heat loss and moisture ingress. Continuous insulation strategies at foundation walls and slab edges are proposed to improve energy performance and reduce condensation risk.

Advanced Weatherization Strategies

Controlling air and moisture movement through the building envelope is critical to reducing energy waste and protecting interior materials.

• Air Barrier and Vapor Control Enhancements: The integration or reinforcement of air barrier systems and smart vapor retarders can dramatically reduce uncontrolled infiltration and condensation risks. These measures will be tailored to wall assemblies to maintain drying potential, particularly in mass masonry structures.
• Window and Door Sealing Improvements: Targeted weatherization at operable joints — through the use of new gaskets, sweeps, horsehair insulation, and precision sealants—will reduce infiltration at known leakage points. This strategy is particularly valuable for older fenestration systems and frequently used public entries.

Energy-Efficient Fenestration & Daylighting

Windows and glazed elements play a critical role in the thermal performance, visual comfort, and energy use of each facility. Targeted upgrades to fenestration systems are key to reducing solar heat gain, improving insulation, and protecting sensitive interior environments such as galleries and archives. These strategies also enhance daylighting quality — balancing natural illumination with solar control to reduce reliance on electric lighting and improve occupant well-being.

High-Performance Windows & Glazing Retrofits

Upgrades to existing glazing systems were studied across all facilities, with each building requiring a tailored approach based on envelope construction, operational needs, and preservation priorities:

• Low-E Coatings: Applying or upgrading to low-emissivity (low-e) coatings on existing or new glazing significantly improves thermal performance by reducing radiant heat transfer while maintaining visible light transmission. This strategy is applicable across all buildings and forms the baseline for many retrofit scenarios.

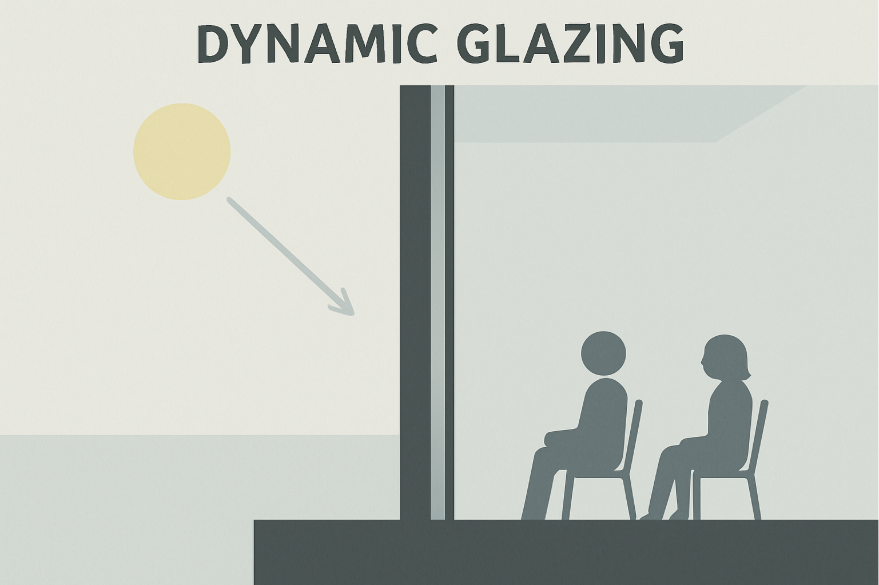

• Dynamic Glazing (Electrochromic and/or Thermochromic): Dynamic glazing (See Figures 12 & 13) technologies automatically tint based on light and temperature conditions, reducing solar gain and glare without sacrificing views or daylight. This is particularly beneficial in highly glazed buildings like the Bloch Building, where large surface areas are exposed to direct sunlight.
• Secondary Interior Storm Windows for the Nelson Building: For the historic Nelson building, interior secondary glazing systems are proposed to improve thermal performance without altering the exterior appearance. These systems add insulating value and air tightness while preserving the integrity of the original windows.
• New Curtainwall System for Linda Hall Library: The existing curtainwall is a major source of energy loss. Proposed replacement options include a new system with high-performance frames and low-e glazing, offering significantly improved U-values, reduced solar gain, and enhanced comfort for occupants.
• UV Protection for Artwork and Archives: Across all buildings, particularly in gallery and archive areas, glazing systems will include integrated UV filtering to protect sensitive materials from photodegradation. This is critical for preserving collections while maintaining access to natural light.

Special note: In figures 12 & 13, the dynamic glazing blocks unwanted parts of the light spectrum, like near-infrared (primary target). In doing so, it often also will dramatically reduce visible light transmittance (VLT). There’s no way around it. Further, it may not be suitable for historic buildings.

FIGURE 10 — Dynamic Glazing in a Low Solar Radiation Environment

FIGURE 11 — Dynamic Glazing in a High Solar Radiation Environment

Daylighting Strategies

Well-executed daylighting reduces energy use and enhances the visual and psychological comfort of occupants. Daylighting strategies are being considered in conjunction with window upgrades to ensure a balanced indoor environment:

• Optimizing Natural Light While Reducing Solar Heat Gain and Glare: Placement, size, and glazing type will be considered holistically to allow for deep daylight penetration while minimizing hotspots and glare. This strategy supports occupant comfort and artifact protection in library and gallery spaces.
• Automated Shading and Light-Reflecting Technologies: To further control light and heat gain, advanced interior and exterior shading systems — such as automated blinds, solar tracking louvers, and light shelves — are recommended. These systems dynamically respond to changing daylight conditions, supporting energy efficiency and preservation goals.

Roof & Exterior Wall Enhancements

Enhancements to roofing systems and exterior wall assemblies present high-impact opportunities to reduce heat gain, improve insulation, and manage stormwater—particularly in the face of rising temperatures and increased precipitation variability. These upgrades support both operational efficiency and climate resilience while aligning with institutional sustainability goals across all three facilities.

Cool Roof & Green Roof Installations

Roof surfaces are among the most exposed and underutilized components of the envelope. Upgrades under consideration include:

• Reflective Coatings or Vegetated Roof Systems for Heat Mitigation: Cool roofs—using high-albedo coatings or materials—can significantly lower roof surface temperatures, reducing building cooling loads and mitigating the Urban Heat Island effect. Where feasible, green roofs (vegetated systems) offer added thermal performance and support stormwater absorption, biodiversity, and microclimate regulation. These strategies are particularly applicable to low-slope or flat roof areas at Linda Hall Library and the Bloch Building.
• Improved Stormwater Management and Insulation Benefits: Green roofs not only insulate against temperature extremes but also absorb and slow rainwater runoff, reducing pressure on stormwater infrastructure. In retrofits, adding rigid insulation beneath roof membranes can improve thermal resistance while integrating drainage layers and root barriers for green roof compatibility.

Sustainable Façade Materials

Exterior walls offer opportunities for material replacement or reinforcement with low-carbon, high-performance alternatives — particularly during major envelope renovations or localized repairs.

• Replacing or Reinforcing Facade Elements with Carbon-Neutral Materials: When restoring or upgrading wall cladding systems, the use of carbon-neutral or low-embodied-carbon materials — such as reclaimed brick, lime-based stucco, or natural fiber panels — can reduce lifecycle emissions. These options are evaluated for use on both existing and infill construction areas, with special consideration for material compatibility with historic structures like the Nelson Building.
• Integrating Passive Ventilation Features: Where possible, envelope upgrades will explore integrated passive ventilation strategies, such as operable louvers, ventilated rainscreens, or shading fins that support natural airflow. These strategies not only enhance indoor environmental quality but reduce reliance on mechanical cooling — particularly valuable in temperate seasons and transitional spaces.

Resilience Enhancements

As climate conditions grow more extreme, the building envelope must evolve to not only reduce energy use but also protect occupants, collections, and infrastructure from the increasing risks posed by wind, rain, humidity, and temperature fluctuations. The following resilience enhancements focus on strengthening the envelope’s capacity to withstand environmental stress while supporting long-term durability and adaptive performance.

Storm-Resistant Envelope Design

With more frequent and intense weather events — including windstorms, driving rain, and localized flooding — each facility’s envelope must be prepared to resist water intrusion and structural failure.

• Impact-Resistant Glazing and Reinforced Wall Structures: Replacing vulnerable glazing with laminated, impact-resistant glass is a critical resilience strategy, especially for large, glazed areas like those at the Bloch Building. Reinforcing wall assemblies at vulnerable corners, parapets, and roof-wall transitions can also reduce the risk of structural compromise during high-wind events.
• Sealing Strategies Against Wind-Driven Rain and Flood Risks: Strategic sealing—at windows, doors, and penetrations—reduces vulnerability to water intrusion under pressure. At grade level, perimeter detailing may include flood barriers or raised thresholds to protect against rising water and splash-back during storms.

Climate-Responsive Ventilation & Breathable Walls

Heavy precipitation, humidity spikes, and warmer seasonal temperatures require walls and ventilation systems that manage moisture and airflow effectively.

• Adaptive Materials that Regulate Moisture and Heat Dynamically: New material technologies—such as hygrothermal insulation, phase-change materials, and vapor-open aerogel plasters—offer the ability to buffer interior conditions without sealing in moisture, especially in heavyweight masonry buildings like the Nelson.
• Hybrid Ventilation Strategies Integrated with Envelope Design: Ventilation systems that combine passive and mechanical methods, such as operable louvers, stack ventilation paths, or ventilated cavities behind rainscreens, offer seasonal flexibility while reducing strain on mechanical systems.

Moisture Control

Moisture control is fundamental to both resilience and material preservation, especially in aging or historic buildings.

• Stormwater Conveyance: Roof and site drainage improvements — including scuppers, gutters, downspouts, and perimeter drains — ensure that water is quickly diverted away from envelope components and foundations, reducing the risk of water ingress and foundation deterioration.
• Flashing, Rainscreens, & Drip Edges: Proper detailing of flashing and overlapping layers at transitions (e.g., window heads, parapets, roof-wall junctions) prevents water tracking and encourages drainage. Rainscreen systems allow wall assemblies to dry and buffer against external moisture.
• Vapor Barriers & Retarders: Strategic placement of vapor control layers — particularly in walls that must insulate from both heat and moisture — prevents condensation within assemblies while allowing drying potential based on building type and regional climate.

TABLE 14 — Recommended Facility Improvement Measures (FIMs) for Envelope Optimization

FIM Category	Specific Measures	Primary Benefits	Applicable Buildings	Implementation Priority
1. High-Performance Insulation Upgrades	• Add above-deck roof insulation   • Use aerogel, VIP, or bio-based insulation in constrained areas   • Install vapor-open interior insulation for historic walls   • Add below-grade & foundation insulation	• Reduced heating/cooling loads   • Better perimeter comfort   • Lower condensation risk	Nelson (historic)   LHL   Bloch	Near- & Mid-Term (as roofs/walls are renovated)
2. Air & Moisture Weatherization	• Air barrier continuity upgrades   • Smart vapor retarders   • Door sweeps, gaskets, horsehair seals   • Seal MEP penetrations	• Lower infiltration   • Improved humidity stability   • Reduced mold & corrosion risks	All buildings	Near-Term (low cost; fast ROI)
3. High-Performance Fenestration	• Low-e glazing upgrades   • Dynamic glazing (electrochromic/thermochromic)   • Secondary interior storms for historic windows   • Full curtainwall replacement at LHL	• Reduced solar gain/glare   • Improved thermal performance   • Better conservation conditions	Nelson (storms)   LHL (curtainwall)   Bloch (dynamic glazing)	Near-Term (low-e)   Mid-Term (system replacements)
4. Daylighting Enhancements	• Shading devices (automated or fixed)   • Reflective interior surfaces/light shelves   • Optimize glazing ratios	• Reduced electric lighting use   • Reduced glare/solar heat gain   • Enhanced occupant visual comfort	Bloch   LHL   Nelson (select zones)	Mid-Term
5. Roof Performance Improvements	• Cool roof membranes (high SRI)   • Modular or extensive green roofs   • Added insulation beneath roofing   • Roof drainage upgrades (scuppers, tapered insulation)	• Lower UHI impacts   • Lower cooling demand   • Improved stormwater management	Bloch   LHL   Nelson (low-slope roofs)	Mid-Term (timed with reroof cycles)
6. Sustainable Façade Upgrades	• Low-carbon cladding materials   • Reinforced masonry repairs   • Ventilated rainscreens where appropriate   • Passive ventilation integration	• Lower embodied carbon   • Better moisture drying potential   • Improved long-term durability	Nelson (preservation-driven)   LHL	Long-Term / Opportunistic (linked to major façade work)
7. Storm & Wind Resilience Enhancements	• Impact-resistant glazing (Bloch)   • Reinforced parapets, cornices (Nelson, LHL)   • Improved flashing & edge securement   • Structural anchors at vulnerable features	• Reduced storm damage risk   • Longer façade lifespan   • Lower operational disruption	Bloch (highest priority)   LHL   Nelson	Near-Term for critical zones   Ongoing maintenance
8. Climate-Responsive Ventilation & Breathable Wall Assemblies	• Vapor-open insulation (e.g., aerogel interior plaster on Nelson)   • Ventilated cavity details   • Hybrid (passive + mechanical) ventilation paths	• Improved drying vs. wetting balance   • Healthier interior RH profiles   • Reduced risk of mold/corrosion	Nelson (critical)   LHL	Mid-Term
9. Moisture Control Systems	• Rainscreens and drip edges   • Foundation drainage improvements   • Flashing upgrades at windows, parapets, and transitions	• Reduced water intrusion   • Lower freeze–thaw damage risk   • Improved envelope durability	All buildings	Near-Term (drainage, flashing)   Mid-Term (rainscreens)
10. Functional Perimeter Enhancements	• Regrading away from foundations   • Permeable paving for stormwater reduction   • Vegetated buffers/shade trees	• Lower stormwater loads   • UHI mitigation   • Reduced basement humidity	Nelson   LHL   Bloch	Mid-Term

Performance Modeling & Impact Analysis

Project analysts performed extensive modeling exercises for all three buildings. They conducted the models using ASHRAE methodology and tuned the as-built (existing conditions) to the current energy bills within ASHRAE’s specified limits. From there, we tested incremental improvements in building tightness, increased insulation for roofs and foundations, better glazing systems, and high albedo roofs.

Across Linda Hall Library and both Nelson-Atkins buildings (Main + Bloch), the modeling shows a clear pattern: reducing uncontrolled air leakage (improving building tightness) is the most impactful envelope strategy for lowering annual energy cost. In the Linda Hall Library runs, improved building tightness reduced annual utility cost by roughly $48,000 per year, far exceeding the savings from roof insulation, glazing changes, or slab insulation in the same comparison set.

In the Nelson-Atkins Main Building and Bloch Building summaries, infiltration reductions similarly produced the largest annual savings, reaching six figures at the more aggressive airtightness scenario.

Other envelope measures showed incremental energy impacts in these specific model runs. Increasing roof insulation produced relatively small annual savings across all buildings (generally a few thousand dollars per year or less). Slab/foundation insulation also modeled as modest from an energy-cost perspective, but it can still be important for perimeter comfort and moisture/condensation control, especially in collection-sensitive environments.

Window and glazing improvements landed in the middle: sometimes modest from a pure utility standpoint, but often pursued for thermal comfort, condensation risk reduction, and daylight/collection management. For example, Linda Hall’s comparison set includes low-e and electrochromic options with measurable (but not dominant) annual savings, while the Nelson-Atkins Main Building summary shows a glazing improvement case at roughly $9,500 per year. Finally, “cool roof” (higher SRI) modeled as essentially neutral in annual savings in this batch of runs, though it may still offer resilience and durability value depending on roof type and exposure.

TABLE 15 — Modeled Energy Savings for Various FIMs Across All Buildings

Envelope FIM (modeled)	Improvement details	LHL – Utility cost savings	NAMA Main – Utility cost savings	NAMA Bloch – Utility cost savings	Takeaway
Improved building tightness / infiltration reduction	Reduced infiltration / improved airtightness	$48,047/yr (largest)	$43,283/yr (0.35 cfm/sf) to $111,029/yr (0.10 cfm/sf)	$52,341/yr (0.35 cfm/sf) to $135,385/yr (0.10 cfm/sf)	Airtightness is the dominant energy lever across all three buildings.
Roof insulation increase	Roof R-value increased in steps	$530–$1,099/yr	$1,205–$2,931/yr	$1,197–$3,672/yr	Helpful, but small annual savings compared to airtightness.
Slab / foundation-edge insulation	Added slab insulation levels	$1,810–$2,233/yr	$103–$186/yr	~$628–$632/yr	Energy impact is modest, but can be valuable for comfort + condensation control at perimeter zones.
Window / glazing improvements	Improved glazing performance	$1,606/yr (windows); $3,913/yr (electrochromic); $1,006/yr (low-e)	$9,530/yr	(Not shown as a primary lever in summary; airtightness dominates)	Typically comfort/collection protection value is high; modeled energy savings vary by building and glazing area.
Cool roof / higher SRI	Increased roof reflectance	$96/yr	~$0/yr (modeled ~neutral)	$10/yr	Minimal modeled annual savings in these runs (still may help with surface temp + roof longevity).

TABLE 16 — Anticipated Improvements Beyond Energy Impacts

Envelope FIM	Energy impact (modeled)	Comfort & stability	Moisture risk reduction	Durability / O&M	Disruption / complexity	Notes from the modeled results
Airtightness / infiltration reduction	High (LHL $48k/yr; NAMA Main up to $111k/yr; Bloch up to $135k/yr)	High	High	Medium	Medium–High	Clear “needle mover” in all three summaries.
Roof insulation increases	Low	Medium	Medium	Medium	Medium	Consistently small annual savings vs. baseline across all three.
Slab / foundation-edge insulation	Low	Medium	Medium–High	Medium	Medium–High	Savings were modest, but perimeter comfort and condensation control can justify it.
Glazing upgrades (windows / low-e / electrochromic)	Low–Medium (building dependent)	High	Medium	Medium	High	LHL shows modest savings for low-e + electrochromic vs baseline; NAMA Main shows ~$9.5k/yr for glazing improvement.
Cool roof / high SRI	Low (near zero in these runs)	Low–Medium	Low	Medium	Low–Medium	Modeled savings were minimal/neutral in all three summaries.

In addition to modeling energy, project analysts extended modeling to include carbon analysis over a 60-year life. The reductions included improvements in energy efficiency, not just building envelope, but also major revisions to the central utility plant. It also included runs for electrification, green power purchase from the utility, and environmentally friendly refrigerants.

FIGURE 12 — Carbon Reduction Activities

In Figure 14 above, the analysis team used C.Scale carbon modeling software to test carbon reduction scenarios. The bar to the right represents existing conditions at Linda Hall Library. The most notable carbon emission over the 60-year analysis period is from energy use including onsite fossil fuel burning for heating. By implementing a series of energy conservation measures to improve the building envelope (e.g., better curtain wall) and system performance (i.e., all-electric building with storage source and ground source heat pump technology), we reduce lifecycle emissions by 44%.

Further reductions in emissions can come from executing a green power purchase agreement with the utility (Evergy), which further reduces lifecycle emissions by 81%. If low-impact refrigerants are used in the heat pumps, we can reduce emissions by 88% overall.

FIGURE 13 — Total Carbon Reductions including Sequestration

But emissions reductions at Linda Hall Library only tell part of total carbon potential story. Linda Hall Library sits on a site of an arboretum, with massive high-carbon storage trees and other landscape features that sequester carbon. These features dramatically reduce the sites overall carbon footprint. In fact, the sequestration from the site alone will nearly offset the building carbon footprint once the carbon reduction measures are enacted. By the time Linda Hall Library were to enact a green power purchase, the site becomes net carbon positive and therefore is restorative and reparative to the local ecosystem all while mitigating risks due to climate change.

TABLE 17 — Summary of Energy and Carbon Impacts

Baseline EUI	Envelope FIMs Tested (high level)	Level of Impact	Notes / Co-benefits
EUI 76.0 kBtu/sf/yr	Roof performance improvements; curtain wall + glazing upgrades; opaque above-grade + foundation insulation	Yes — meaningful, especially as part of a package	Biggest envelope driver is curtain wall replacement (comfort, condensation control, peak loads). Arboretum sequestration becomes a major story once operational emissions are reduced.

Implementation Strategy & Roadmap

Phased Implementation Plan

Prioritization of FIMs based on cost, impact, and feasibility

Envelope improvements are most successful when sequenced to (1) reduce risk, (2) capture the largest performance gains early, and (3) align work with planned capital cycles. Across the three buildings studied, modeling and field observations point to a consistent priority order: air leakage reduction and interface detailing provide the largest “needle-moving” opportunity, while roof insulation, slab/foundation insulation, and cool-roof measures tend to offer incremental energy savings but can still deliver important durability and comfort benefits.

TABLE 18 — Pragmatic Roadmap of Improvement Priorities

Tier / Phase	Timing	Primary Goal	Typical Envelope FIMs in this Phase	Why it Comes First (Value)
Tier 1: High-Impact, High-Feasibility	0–24 months	Reduce risk and capture the biggest “needle movers” fast	Airtightness & infiltration reduction (doors, vestibules, penetrations, transitions); water management (flashing, drainage, perimeter grading, leak repairs); targeted window tune-ups (sealants, hardware, localized condensation hotspots)	Largest modeled energy impact (air leakage) + immediate comfort and moisture-risk improvements
Tier 2: Strategic System Upgrades	2–5 years	Coordinate upgrades with planned capital cycles	Glazing upgrades where overheating/solar gain is a driver (curtain wall/high exposure areas); roof insulation + membrane renewal bundled with reroofing; selective foundation-edge insulation aligned with site drainage/waterproofing work	Best cost-effectiveness when bundled with renewals; improves thermal stability and durability
Tier 3: Transformational Envelope Projects	5–10 years	Deep retrofit and modernization aligned with long-range planning	Curtain wall replacement (where justified); deep insulation strategies for opaque walls (interior/exterior depending on preservation constraints); integrated façade modernization tied to broader decarbonization	Highest disruption/capital; best timed with major renovations and preservation approvals

This phased structure supports a “build once, build wisely” approach: address leakage and moisture risks first, then pursue larger envelope upgrades in tandem with planned roof and façade renewals, and finally align deep retrofits with long-range carbon and preservation goals.

Coordination with Preservation Requirements for Historic Structures

For historically significant buildings, envelope performance improvements must be balanced with architectural integrity and conservation best practices. The recommended approach is to use a preservation-first decision framework:

• Prioritize reversible interventions (e.g., improved air sealing, interior secondary glazing, targeted storm windows, minimally invasive insulation strategies).
• Use mock-ups and pilot areas to validate appearance, condensation performance, and constructability before expanding scope.
• Document existing conditions and character-defining elements early, so energy upgrades are guided by an agreed preservation strategy rather than discovered conflicts during construction.
• When large envelope work is required, align improvements with periods of planned renewal (reroofing, façade restoration campaigns) so performance upgrades occur as part of a historically appropriate restoration scope.

Funding & Incentive Opportunities

Available Grants, Tax Credits, and Sustainability Funding Sources

A blended funding strategy is typically most successful—combining institutional capital, philanthropy, available rebates, and project-specific incentives. Potential funding pathways include:

• Utility and energy-efficiency incentives: rebates for building controls, HVAC integration measures that reduce loads, and in some cases envelope-related improvements (programs vary by utility and year).
• Public and philanthropic grants: sustainability, resilience, cultural preservation, and climate adaptation grant programs that support planning and implementation—especially when projects emphasize collection protection, risk reduction, and public benefit.
• Federal incentives for clean energy and efficiency: certain projects may qualify through tax-credit structures or nonprofit “direct pay/elective pay” approaches depending on project scope and ownership structure. (Note: Although some incentives like solar ITC Direct Pay are being phased out in 2026, many other incentives like for thermal energy systems and ground-source heat pumps remain.)
• Specialized financing: options such as performance contracting, property assessed clean energy or PACE (available in most states), low-interest sustainability funds, green loans, or other mechanisms that support lifecycle cost-effective improvements.

Because incentive programs and eligibility rules change over time, the recommended action is to develop a funding matrix during early implementation planning that maps each high-priority FIM to possible funding sources, timing windows, and documentation requirements.

Monitoring & Verification

Performance Tracking Post-Implementation

To ensure envelope improvements deliver real outcomes—not just modeled benefits—each project should include a monitoring and verification (M&V) plan. At a minimum, tracking should include:

• Utility tracking and normalization: monthly energy tracking with weather normalization to confirm year-over-year performance.
• Targeted envelope testing: blower door testing (whole-building or zone-based where feasible), infrared thermography under suitable conditions, and periodic inspection of repaired interfaces.
• Indoor environment tracking: perimeter temperature stability, relative humidity variability, and condensation event tracking in sensitive zones — especially relevant for collections and occupant wellness.

Ongoing Adjustments Based on Data Insights

Envelope performance is interconnected with operations. The M&V plan should be structured as a feedback loop:

• Use early results to fine-tune door hardware, controls sequences, humidity strategies, and maintenance plans.
• Establish thresholds and triggers (e.g., recurring condensation, persistent hot/cold complaints, unusual energy spikes) that prompt investigation.
• Maintain a living “envelope log” so recurring issues (leaks, sealant failures, seasonal discomfort) can be addressed proactively rather than episodically.

If You Can Only Do Three Things…

If you have short windows and/or tight budgets, consider these strategies first.

• Tighten the building (air sealing at doors, joints, and penetrations) to reduce energy waste and stabilize indoor conditions.
• Keep water out (roof drainage, flashing, and perimeter drainage improvements) to prevent the most costly and damaging failures.

Fix the worst glass first (targeted glazing and shading upgrades at the most exposed façades) to reduce overheating, condensation risk, and collection stress.
